DESIGNERS & MANUFACTURERS OF FUME SCRUBBING SYSTEMS, GAS ABSORPTION SYSTEMS, FUME SCRUBBERS, AIR POLLUTION CONTROL SYSTEMS, HOODS, DUCTING IN INDIA

SHREE GANESH ENGINEERS specializes in Designing, Manufacturing & commissioning of complete Fume Scrubbing Systems (Gas Absorption systems) on turn-key basis. It is an effective way to control air Pollution by removing Hazardous & Noxious fumes / gases like HCl, SO2, Nox, Nitrous, Cl2, HBr, HF, NH3, Chrome, Triethylamine (TEA) and so on generating during Chemical reactions or Chemical Processing, before releasing them into the atmosphere.

Our Gas Absorption systems or Fume scrubbing systems are

  • Highly Efficient

  • Low Maintenance

  • Low Operating or recurring cost

  • Final chimney discharge meets emission standards set by Indian Pollution Control Board.


Fume Scrubbing systems or Gas absorption systems consists of Hoods, Fume Scrubber, Ducting, Liquid recirculation tank, Blower, Chimney and Heat exchanger.

We offer three types of Fume scrubbers. Type: Wet Fume Scrubber -(Vertical Fume Scrubber, Horizontal Fume Scrubber), Venturi Scrubbers and Plate Scrubbers.

The first type of wet fume scrubber or wet gas scrubber (Vertical / Horizontal ) is packed bed type scrubbers. It is a common form of wet scrubbers in which column is filled with suitable type of random packings like Pall rings, Intalox saddles, Raschig rings, etc. Scrubbing liquid is evenly distributed above the packing and flows down through the bed. The liquid wets the packing and forms a thin film. In vertical designs (packed towers), the gas stream flows up the column in vertical type fume scrubber (countercurrent to the liquid) and in horizontal type fume scrubber, it is cross current direction. Type and quantities of scrubbing media depends upon gas or fumes type and quantity. Heat exchanger in some cases may require, if gas-liquid reaction is exothermic.

Fume scrubbing systems are designed efficiently using wet fume scrubber or venturi scrubber to meet final chimney emission standards set by Indian Pollution Control Board norms.

FOLLOWING EQUIPMENTS ARE REQUIRED FOR FUME SCRUBBING SYSTEM:

  • Suction Fume Hoods (If tanks are Open from Top)

  • Ducting

  • Fume Scrubber

  • Centrifugal FRP Blower

  • Liquid Recirculation Tank

  • Pump

  • Pump Piping

  • Heat Exchanger (It is required when Liquid and Gas reaction is exothermic)

SOME OF THE PHOTOGRAPHS FOR FUME SCRUBBING SYSTEMS, GAS ABSORPTION SYSTEMS WITH / WITHOUT HEAT EXCHANGERS DESIGNED / SUPPLIED BY US.

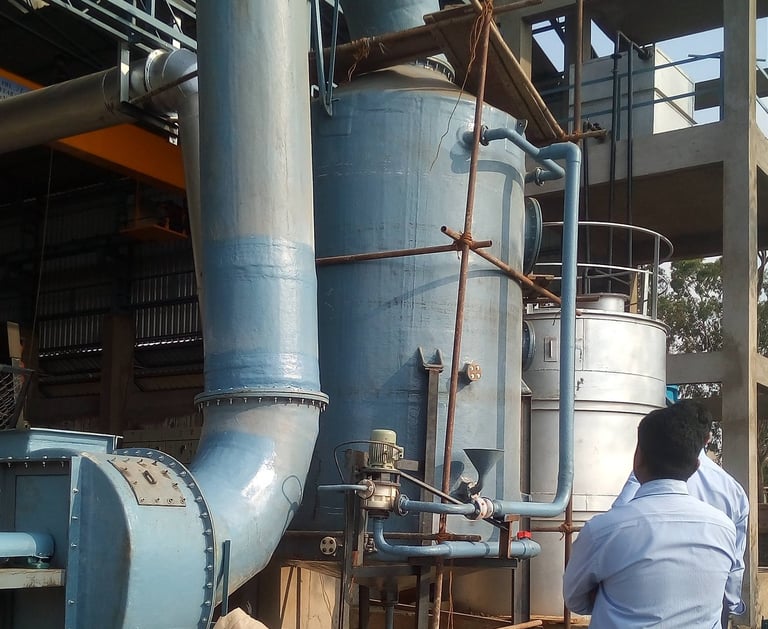

HCL fumes scrubbing systems for HCL fumes geeerated from Hot Acid Pickling tanks.HCL fumes scrubbing systems for HCL fumes geeerated from Hot Acid Pickling tanks.

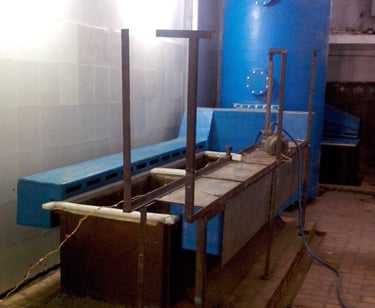

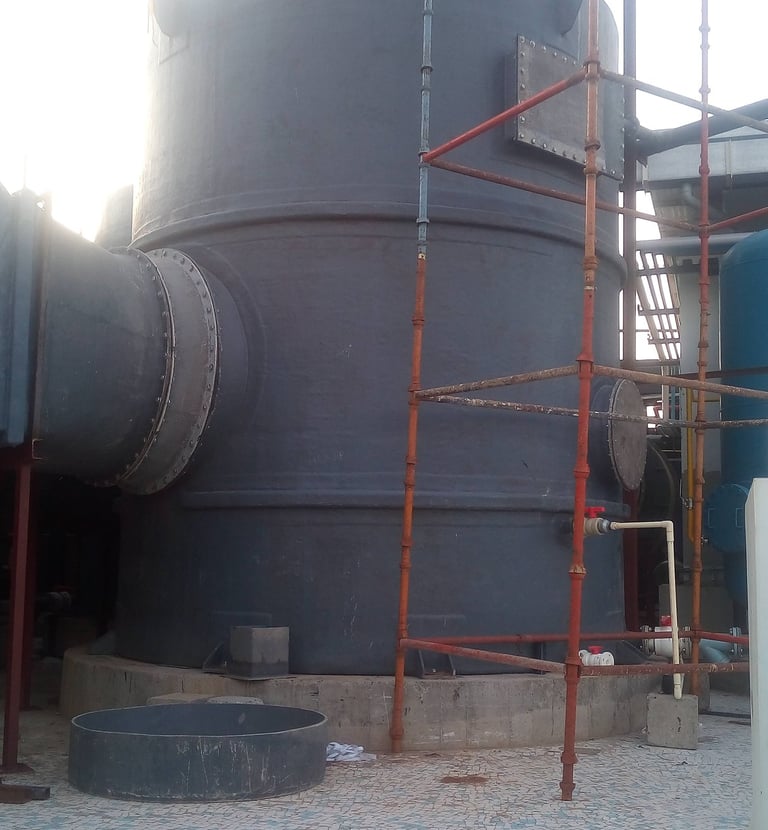

Fume scrubbing system for acidic fumes from continuous Copper wire Tin Plating tanks.Fume scrubbing system for acidic fumes from continuous Copper wire Tin Plating tanks.

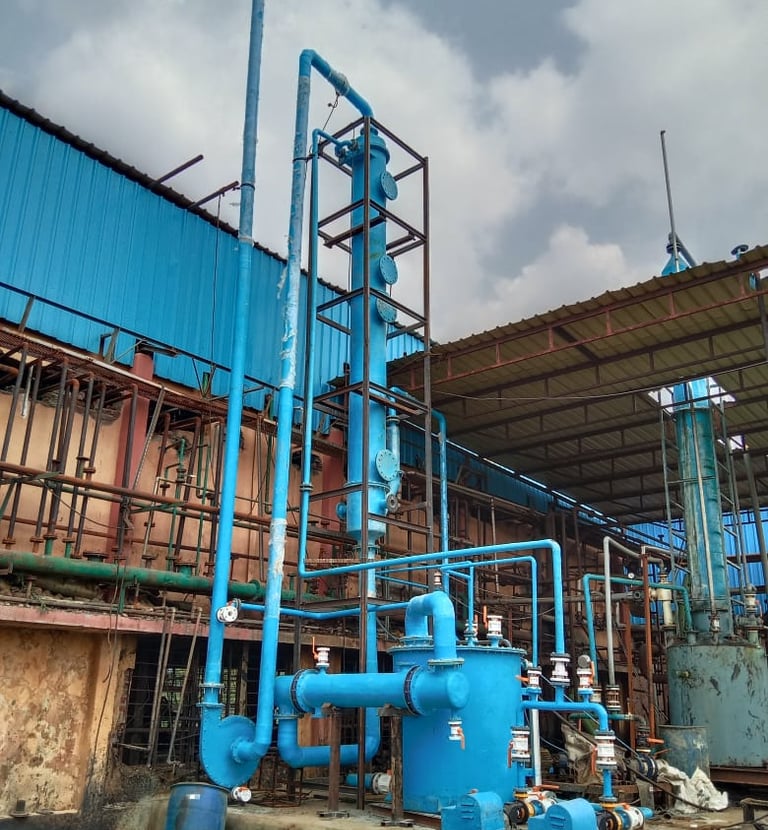

Bio gas fumes scrubbing system, H2S Gas. scrubbing systemBio gas fumes scrubbing system, H2S Gas. scrubbing system

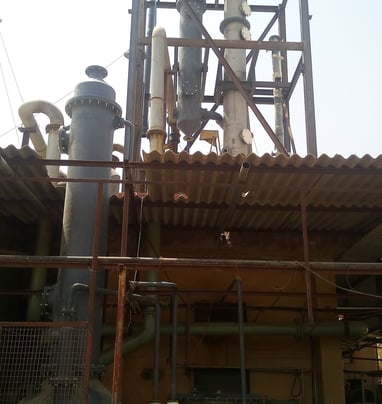

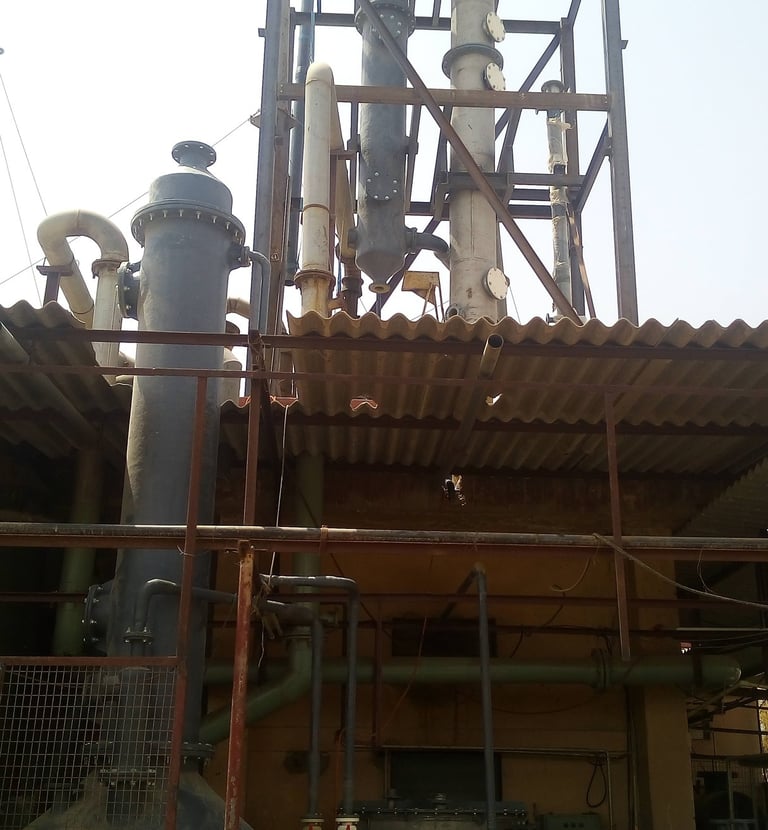

NITROUS NOx GAS SCRUBBING SYSTEM with H/E, HCL FUMES SCRUBBING SYSTEM,, AMMONIA GAS SCRUBBING SYSTEMNITROUS NOx GAS SCRUBBING SYSTEM with H/E, HCL FUMES SCRUBBING SYSTEM,, AMMONIA GAS SCRUBBING SYSTEM
Triethylamine (TEA) gas scrubbing system for Cold box sand core making process Triethylamine (TEA) gas scrubbing system for Cold box sand core making process
HF fumes scrubbing system HF fumes scrubbing system

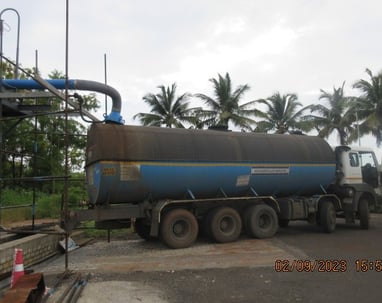

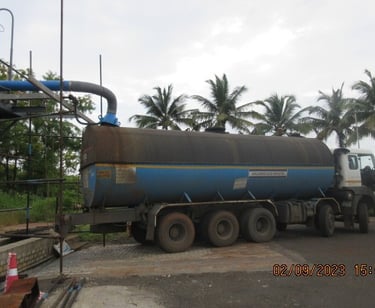

HCL fumes scrubbing system for HCL fumes generating from Acid Tanker.HCL fumes scrubbing system for HCL fumes generating from Acid Tanker.

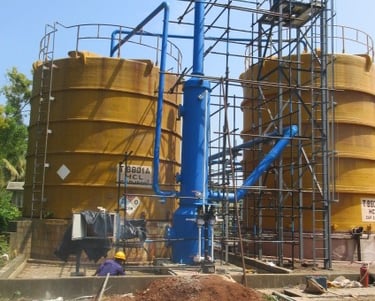

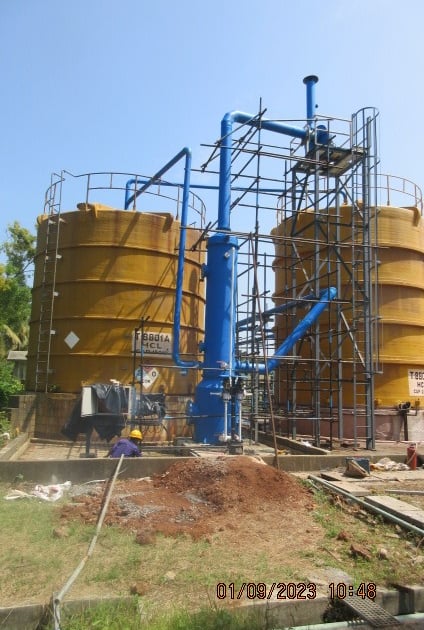

HCL fume scrubbing system for HCL fumes generating from from HCL storage tanksHCL fume scrubbing system for HCL fumes generating from from HCL storage tanks
Wet Scrubbing system for Hard Chrome Plating plant. Wet Scrubbing system for Hard Chrome Plating plant.

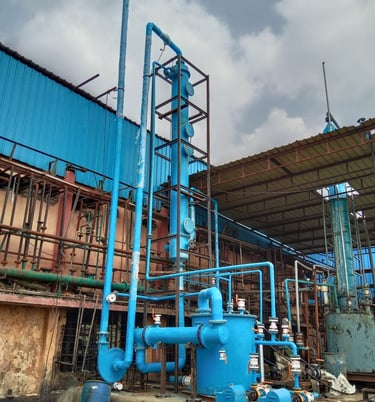

h2S GAS SCRUBBING SYSTEM WITH HEAT EXCHANGERh2S GAS SCRUBBING SYSTEM WITH HEAT EXCHANGER
Nitrous gas scrubbing system with Heat exchangersNitrous gas scrubbing system with Heat exchangers
Fume Scrubbing system for Laboratory fume hoods, capacity 52000 cfmFume Scrubbing system for Laboratory fume hoods, capacity 52000 cfm
